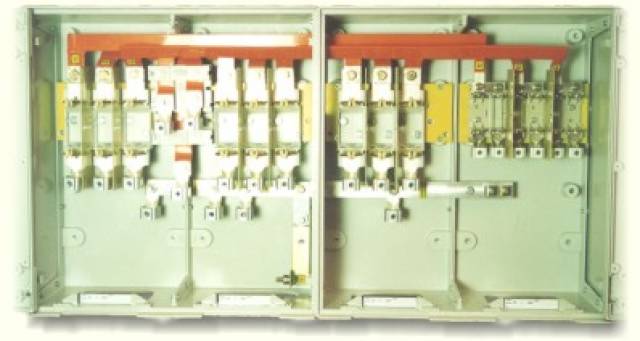

PRS 3+6x160 3.1.33 W flush-mounted (3D)
Product code: 3014 3.1.33
SKU manufacturer: 8595208613685
Code of supplier: 8595208613685
Brand: ELPLAST-KPZ
Cable switch-disconnector cabinet with three outgoing ways from size 2 fuse bases rated up to 400 A, two outgoing ways from size 00 fuse bases rated up to 160 A, and one non-fused incoming connection terminated with W and V clamps.
Detailed Description
Cable switch-disconnector cabinet for protecting cable networks, with cable connections up to 240 mm2 and up to 700 mm2. The cabinet is primarily used to protect cable networks and distribution systems.
The PRS cabinets are certified by EZÚ Prague. The 3D cabinet system also includes metering cabinets and gas meter cabinets.
The cabinet is factory-fitted with W clamps.
Package contents
- W clamps are included with the cabinet
Specification points
- cabinet system 3D
- for protecting and disconnecting cable networks
- robust, rigid composite frame made of SMC
- maintenance-free
- high-quality fuse bases
- matching design with metering and gas meter cabinets
- no need to crimp cable lugs
Technical specification
| features: | |
| Brand | |
| Rated voltage | 500 V |
| Mounting method | Flush mounting |
| Rated current | A |
| Number of phases | |
| Degree of protection (IP) | IP44 |
| Frequency | 50 Hz |
| Impact strength | IK10 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 35 kA |
| Type of closure | Single-point lock with utility lock |
| Height | 600 mm |
| Depth | 240 mm |
| Width | 1100 mm |
| Material | Polyester, glass fibre reinforced |
| Number of inlets | |
| Number of groups | |
| Connectable conductor cross section (multi-wired) | mm2 |
| Type of fuse | |
| Type of incoming terminal | |
| Number of outgoing circuits | |
| Connectable conductor cross section at the outgoing terminal | mm2 |
| Type of outgoing terminal | |
